R-Type Mini Pellet Machine

R-Type Flat Die Mini Pellet Machine

R-type mini pellet machine also belongs to the flat structure pellet machine, due to suitable for small-scale production of household pellets making, it is also called homemade mini pellet machine or home use mini pellet machine. R-type mini pellet machine is short for rotating roller type mini pellet machine. Compared with D-type homemade mini pellet machine has the different granulating principle. R-type home use mini pellet machine is driven by the drive shaft roller rotation, flat die remain stationary , raw materials through high temperature bearings, in the moving roll and die extrusion, through the hole in the flat die, the formation of particles from the rolling out of the hopper. Compared with the D-type homemade mini pellet machine, R-type mini pellet machine power is more robust, suitable for wood chips, fruit trees, bamboo and crop stalks and other granulation of biomass material which is difficult to form. The finished sawdust pellets are manufactured by grinding, drying, screening, granulating, cooling and packing, without any additives. The finished products can be used in biomass power generation, boilers, fireplaces, household equipment, etc..
R-type mini pellet machine inner structureR-type mini pellet machine inner structure

Different Types of Pellet Making Machine

Electric Motor R-Type Mini Pellet Machine

Appearance Model Power Capacity(kg/h) Weight(nw/gw)
r-type electric mini pellet machine ZLSP-R 200B 7.5 kW 80-120 215/245
ZLSP-R 300B 22 kW 250-350 540/575
ZLSP-R 400B 30 kW 350-450 770/810
ZLSP-R 420B 37 kW 400-600 700/1100/1200
ZLSP-R 550B 55 kW 500-800 1770

Diesel Engine R-Type Mini Pellet Machine

Appearance Model Power Capacity(kg/h) Weight(nw/gw)
r-type diesel engine mini pellet machine ZLSP-R 200A 15HP 80-120 320/350
ZLSP-R 300A 41 HP 250-350 850/890
ZLSP-R 400A 55 HP 350-450 1010/1050

Advantages of R-Type Flat Die Mini Pellet Machine

R-type small pellet mill and D-type small pellet mill are two kinds of flat die type pellet making machine with different granulating principles. Their production characteristics are different, and they have their own advantages in dealing with different raw materials.

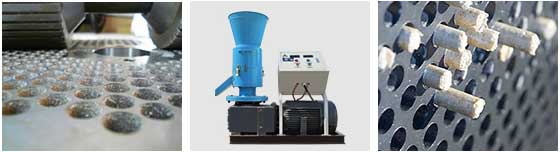

Advantages of R-Type Flat Die Mini Pellet Machine

  • The R-type mini pellet machine roller adopts a large diameter roller, which is powerful and can easily handle solid materials such as hardwood, wood chips and so on.
  • R type homemade mini pellet machine shell is made of steel structure, which has stronger strength and toughness and longer service life. More suitable for the mechanical requirements of the new high-particle production.
  • Because of the low rotating speed and low temperature of granulation process, R-type home use mini pellet machine will not affect the composition of biomass raw materials, especially suitable for the production of particles with low temperature requirement.
  • The pellet granulation rate of R-type mini pellet machine is high, the particle strength is high, the appearance is smooth, and the quality is better. Suitable for the appearance of pellets with higher requirements for pellet production.
  • R-type homemade mini pellet machine all bearings are sealed structure, can effectively prevent dust from entering, thus improving the bearing working environment, extending the bearing life.

How to Choose Your Own Homemade Mini Pellet Machines R-type or D-type?

FAQ about how to choose your suitable home use pellet machine.

  • If I want to buy a cow feed pellet maker, which type should I choose?

AGICO pellet machine experts recommend you buy D-type small pellet machine. D-type homemade mini pellet machine with high speed, the raw materials can be ripened during production process. Granule formation process can make grain, beans in the trypsin resistance factor degeneration, can reduce the occurrence of animal indigestion. Animal feed pellet making, we recommend D-type small particle machine. Welcome to contact us to buy feed pellet making machine.

  • I want to buy a small pellet mill to process pine and bamboo chips, and I need the finished particles to be more delicate. Which one should I choose?

AGICO particle machine experts recommend for you, if your budget is sufficient, we recommend the purchase of R-type small particle machine. R-type mini pellet machine with slow speed processing wood material more refined. Its power is more powerful, good at dealing with hard raw materials, and forming the particle density and smoothness are better, is your best choice.

  • If I want to make pellet size nearly 6mm, how should I choose it?

AGICO particle machine experts to answer for you, the size of the pellet radius is determined by the size of the flat die hole size. The choice of the flat die hole size is selected according to customer needs, a variety of pellet specifications die hole diameter (2.5 ~ 12mm mm) available for users to choose. If the customer has special aperture requirements, can be customized. Welcome to contact us, select the appropriate size of your small particle machine.

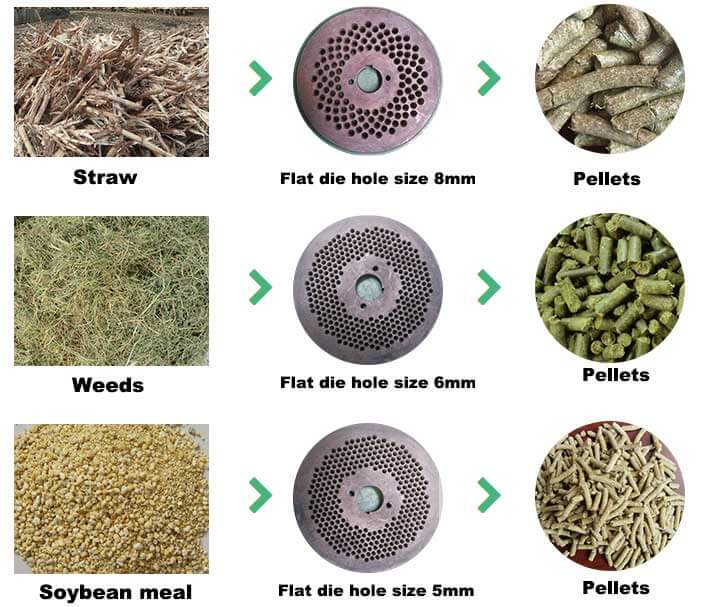

r-type pellet machine flat die hole size

  • What is the cost to buy a small particles machine?

AGICO pellet mill experts to answer your questions, about the price of homemade mini pellet machine, our sales experts will be based on your needs, for you with the appropriate parameters of the pellet machine models, and according to your mode of transport and transport distance for you to report a reasonable price. Welcome to contact our sales experts for your quotation.

  • What is the transportation mode of small pellet machine?

AGICO particle machine experts to answer your questions, the specific mode of transport we will be based on your country, distance, and for your mode of transport to transport. We support land, sea, shipping and other modes of transportation.
