Product Parameters
Material:PolypropyleneApplicable Scope: Suitable for chickens, ducks, geese, rabbits, pigeons, sheep, pigs, etc.
Product Dimensions (cm): 60*50*4, 50*50*4, 100*50*4, 120*50*4
Mesh Size (cm): 2*2.5, 2*2.4, 2.4*2.8, 2.5*5, 1.6*1.6
Matching Products: PVC beams, support legs
Customization: Customization is supported
The plastic slatted floor for poultry is a common chicken flooring material used in poultry farms. It is made of high-density polyethylene or polypropylene and is usually square or rectangular in shape. Its surface has many small holes that allow chicken feces and urine to pass through, keeping the floor dry and clean. Using plastic slatted floors in free-range chicken houses can improve the living environment of the chickens, reduce the risk of disease transmission, and increase their productivity. Additionally, it is easy to clean and maintain, which can lower farming costs. However, when selecting and using plastic slatted floors, factors such as size, load-bearing capacity, and durability need to be considered to ensure the health and safety of the chickens.

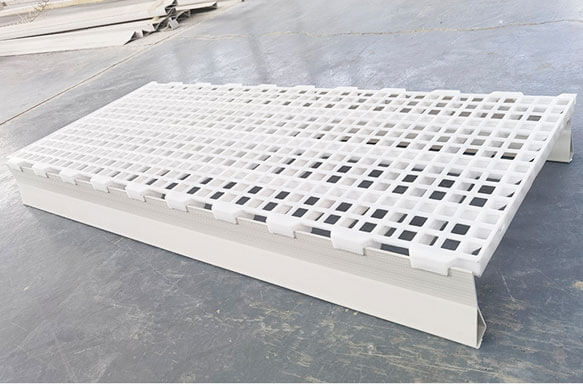

AGICO New Designed Plastic Slatted Floor for Poultry

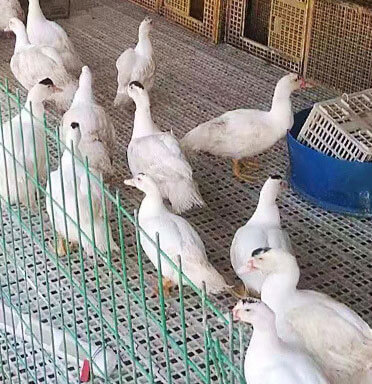

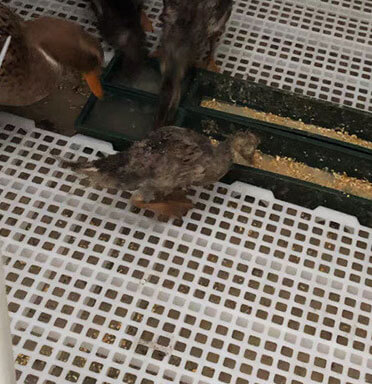

The plastic slatted floor produced by AGICO has strong versatility and is suitable for all kinds of cage-free chicken houses, such as laying hens, broilers, and chicks. The plastic slatted floor is also suitable for other poultry such as duck houses and goose houses, and the plastic slatted floor for pigs and sheep is also favored by customers. Our plastic slatted flooring is made of pure raw material PPEPS30R engineering polypropylene, which is injection molded once and has good chemical stability, making it resistant to deformation. The raw material is also added with UV absorbers, which extends the service life of the plastic slatted floor.

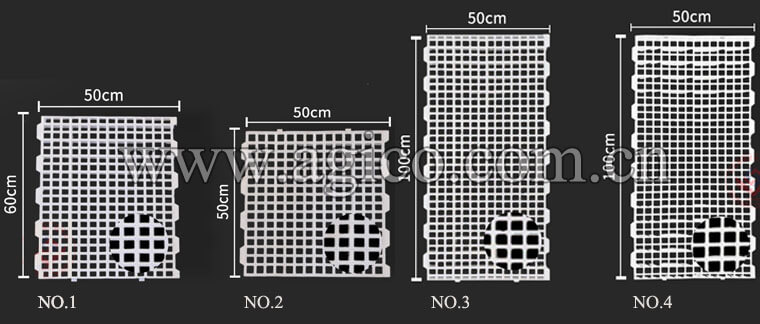

Typs of Plastic Slatted Floor for Sale
| NO. | Dimensions (cm) | Mesh Size (cm) | Weight（kg） | Thickness(cm) |
|---|---|---|---|---|
| 1 | 60*50 | 2*2.5 | 1.1 | 4 |
| 2 | 50*50 | 2*2.5 | 0.9 | 4 |
| 3 | 100*50 | 2*2.4 | 1.8 | 4 |
| 4 | 100*50 | 2.4*2.8 | 1.8 | 4 |

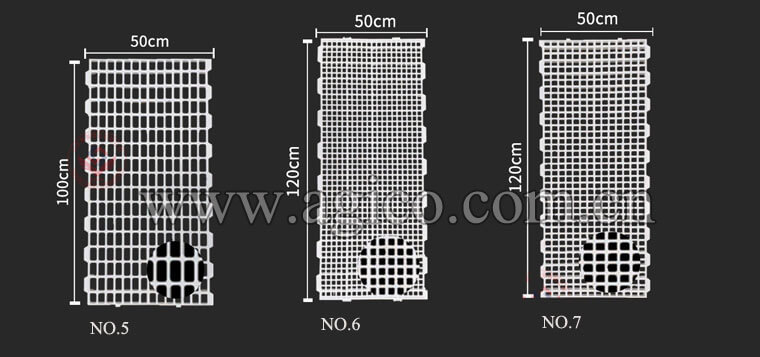

| NO. | Dimensions (cm) | Mesh Size (cm) | Weight（kg） | Thickness(cm) |
|---|---|---|---|---|
| 5 | 100*50 | 2.5*5 | 1.7 | 4 |
| 6 | 120*50 | 1.6*1.6 | 2 | 4 |
| 7 | 120*50 | 2.5*5 | 2.2 | 4 |

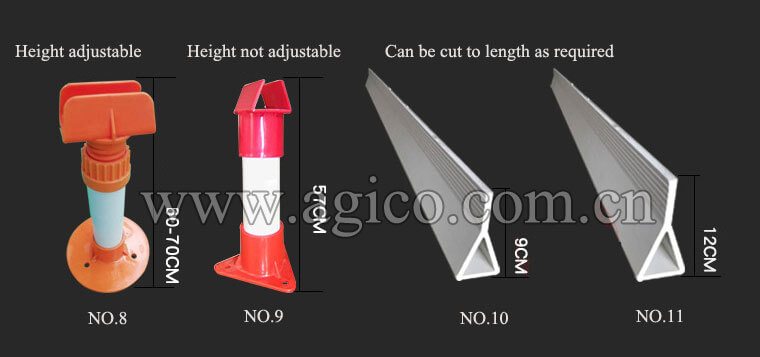

| NO. | Name | Hight (cm) | Height adjustable | Weight（kg） |
|---|---|---|---|---|
| 8 | Support frame | 60-70 | Yes | 0.5 |
| 9 | Support frame | 57 | No | 0.45 |
| NO. | Name | Hight (cm) | Length(m) | Weight（kg） |
| 10 | supporting beam | 9 | 3 | 3.6 |
| 11 | supporting beam | 12 | 3 | 5 |

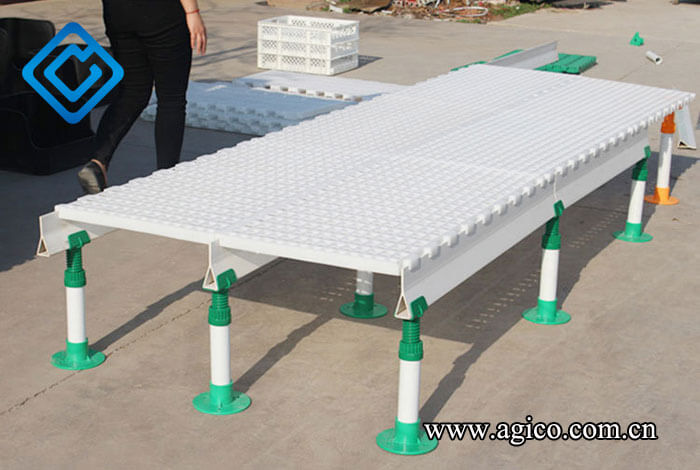

Standard Configuration Plastic Slatted Flooring System
The plastic slatted floor system for poultry consists of plastic slatted floor, support beams, support frame sets, and various small accessories. If we use an 18 square meter plastic slatted floor system as a unit, the main components required for a plastic slatted floor unit include the following.- 30 pieces of 1200*500*40 plastic slatted floor.
- There are 7 supporting beams, one is placed at an interval of 0.5m, each is 3m long, and the material is PVC.
- A set of 28 support frames. The height of the support frame is between 570-700mm and can be adjusted by yourself.

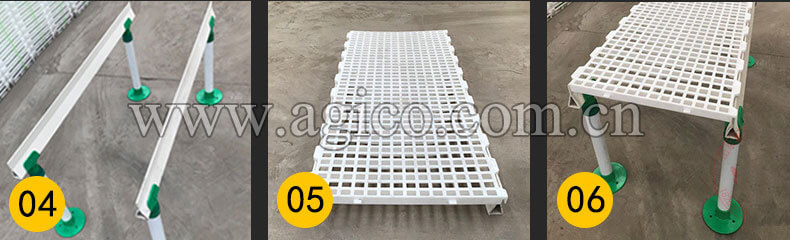

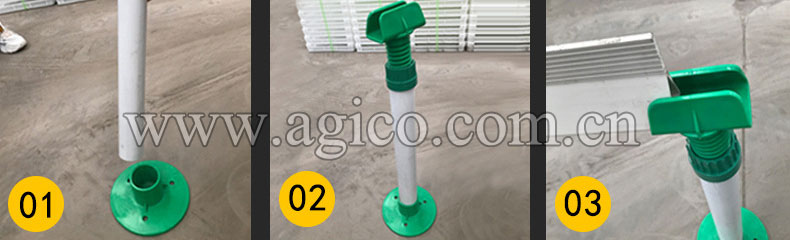

Installation Steps for Plastic Slatted Flooring System
Why Choose AGICO Plastic Slatted Flooring System
Card slot fit
The plastic slatted floor is connected by buckle splicing, which is more convenient for loading and unloading. The plastic floors connected together are tightly assembled without warping, and the connection is stable.
Stronger load-bearing
The back of the plastic slatted floor for poultry adopts an arched design, which can reasonably disperse the load. Stronger and more pressure-resistant, the maximum load-bearing capacity can reach 500 kg.
Easy to clean
Plastic slatted floor products can be cleaned with high-pressure water guns, which are not easy to hide dirt and can effectively improve the sanitary conditions of poultry houses.
Raw material safety
The raw material of the plastic slatted floor for poultry is made of high-quality pure polypropylene, food-grade material, which is more safe and secure.

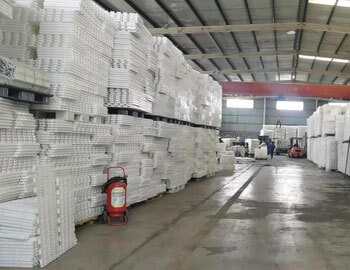

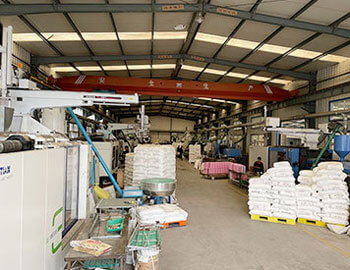

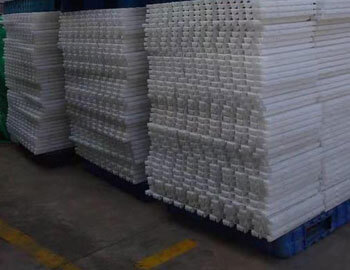

Our Factory
